  • 04 series car regulations.JSHC0420H-K-A2 series

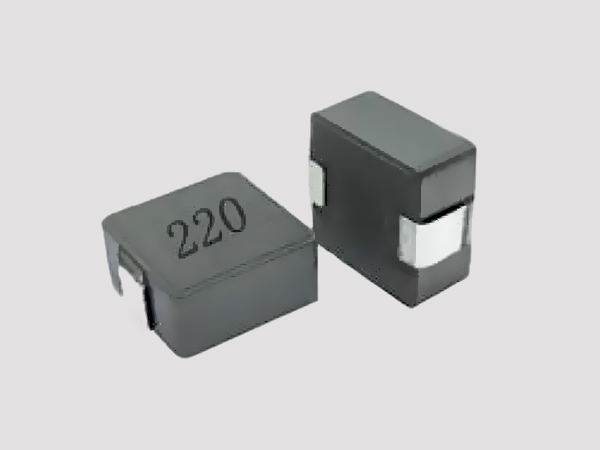

04 series car regulations.JSHC0420H-K-A2 series

Automotive molded power inductor

Inductance functionKeysight Technologies LCRMeasuring instrument4285AMeasured. The same measurement equipment can be used for the same measurement. The test frequency is 100 kHz,OSC LEVEL: 1V. Can be customized according to individual specifications.

Product parameterIATF16949/AEC-Q200

Part Number Inductance Tolerance RDC(mΩ) Isat(A) Irms(A)
(uH) (±%) Typical Max Typical Max Typical Max
JSHC0420H-R22M-K 0.22 20 7.2 8 12.0 10.8 9.0 8.1
JSHC0420H-R33M-K 0.33 20 10.8 12 10.5 9.45 8.0 7.2
JSHC0420H-R47M-K 0.47 20 12.6 14 9.0 8.1 5.5 4.95
JSHC0420H-R56M-K 0.56 20 16.2 18 9.5 8.55 5.2 4.68
JSHC0420H-R68M-K 0.68 20 18.9 21 8.0 7.2 5.0 4.5
JSHC0420H-1R0M-K 1.0 20 24.3 27 7.0 6.3 4.5 4.05
JSHC0420H-1R5M-K 1.5 20 32.4 36 6.0 5.4 4.0 3.6
JSHC0420H-2R2M-K 2.2 20 52.2 58 5.0 4.5 3.0 2.7
JSHC0420H-3R3M-K 3.3 20 81 90 3.0 2.7 2.0 1.8
JSHC0420H-4R7M-K 4.7 20 135 150 3.0 2.7 2.0 1.8
JSHC0420H-5R6M-K 5.6 20 144 160 2.6 2.34 2.0 1.8
JSHC0420H-6R8M-K 6.8 20 153 170 2.5 2.25 2.0 1.8
JSHC0420H-100M-K 100 20 180 200 2.0 1.8 1.5 1.8


•It can be customized according to individual requirements.

•Operating temperature range:－55～165℃

•Isat: The inductance value decreases to its initial value 30%When the DC current is loaded

•Itemp: The self-warming temperature of the inductor surface rises about 40℃The DC current value

•※ItempThe reference value is based on the company's use environment
