| Part Number |
L (uH) |
Rdc(mΩ) | Isat(A) | Itemp(A) | Remarks | |||
| Max. | Typ. | Max. | Typ. | Max. | Typ. | |||
| BPS201208H-R22M-T0 | 0.22 | 22 | 17 | 6.5 | 7.0 | 4.8 | 5.6 |

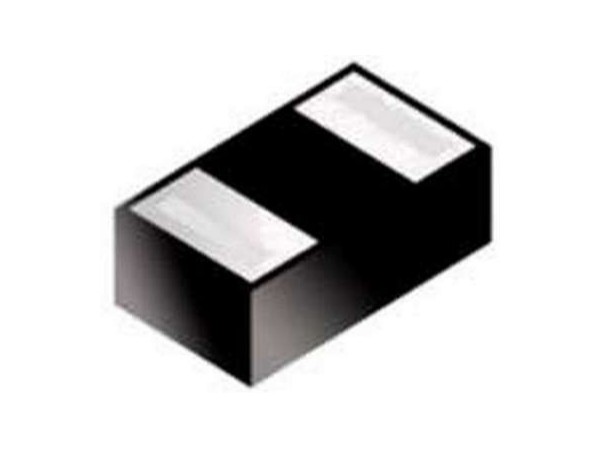

L:2.0±0.2 W:1.2±0.2 H:0.8 MAX bps201208h产品规格书..pdf |
|
BPS201208H-R33M-T0 |
0.33 | 27 | 22 | 5.5 | 6.0 | 4.1 | 4.8 | |
|
BPS201208H-R47M-T0 |
0.47 | 42 | 38 | 4.7 | 5.3 | 3.1 | 3.7 | |
|
BPS201208H-1R0M-T0 |
1.0 | 85 | 75 | 3.5 | 4.0 | 2.0 | 2.4 | |
| BPS201208H-1R5M-T0 | 1.5 | 145 | 130 | 2.4 | 2.8 | 1.65 | 1.85 | |
|
BPS201208H-2R2M-T0 |
2.2 | 175 | 160 | 2.1 | 2.5 | 1.55 | 1.75 | |
•Can be customized according to individual specifications.
•The test frequency is1MHz,OSC LEVEL:0.5V.
•Inductance functionKeysight Technologies LCRMeasuring instrument4285AMeasured. The same measurement equipment can be used for the same measurement.
•Inductance value: The inductance value decreases approximately from the actual initial value30%When the direct current.
•Isat: Inductance decreases approximately from the actual initial value30%The DC current.
•Itemp: The temperature rises aboutΔT=40°CWhen the direct current.
•Depending on the circumstances of our use,ItempIs a reference value.
•In the final application, the circuit should be designed so that the temperature rise of the component does not exceed40℃.
