| Part Number |
L (uH) |
Rdc(mΩ) | Isat(A) | Itemp(A) | Remarks | |||
| Max. | Typ. | Max. | Typ. | Max. | Typ. | |||

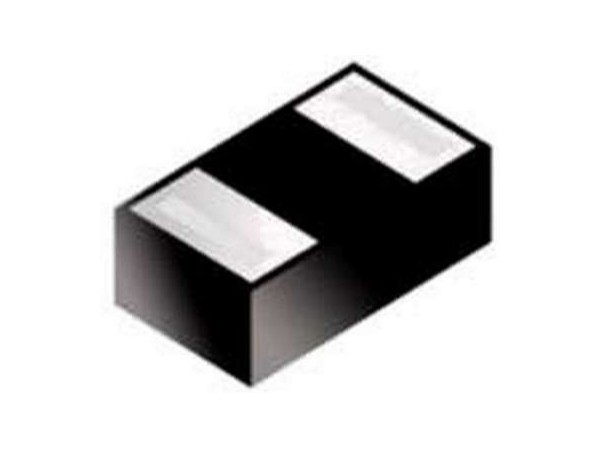

| BPS141208W-R24M-T0 | 0.24 | 24 | 20 | 6.5 | 7.0 | 4.9 | 5.3 |
L:1.4±0.2 W:1.2±0.2 H:0.8 MAX bps141208w产品规格书.pdf |
|
BPS141208W-R33M-T0 |
0.33 | 25 | 22 | 5.0 | 5.3 | 3.8 | 4.2 | |
|
BPS141208W-R47M-T0 |
0.47 | 32 | 29 | 4.0 | 4.5 | 3.2 | 3.6 | |
| BPS141208W-1R0M-T0 | 1.0 | 90 | 79 | 2.7 | 3.0 | 1.8 | 2.1 | |
•Can be customized according to individual specifications.
•The test frequency is1MHz,OSC LEVEL:0.5V.
•Inductance functionKeysight Technologies LCRMeasuring instrument4285AMeasured. The same measurement equipment can be used for the same measurement.
•Inductance value: The inductance value decreases approximately from the actual initial value30%When the direct current.
•Isat: Inductance decreases approximately from the actual initial value30%The DC current.
•Itemp: The temperature rises aboutΔT=40°CWhen the direct current.
•Depending on the circumstances of our use,ItempIs a reference value.
•In the final application, the circuit should be designed so that the temperature rise of the component does not exceed40℃.
