| Part Number |
L (uH) |
Rdc(mΩ) | Isat(A) | Itemp(A) | Remarks | |||
| Max. | Typ. | Max. | Typ. | Max. | Typ. | |||
| BPS160808W-R24M-T0 | 0.24 | 31 | 27 | 4.5 | 5.4 | 3.5 | 3.7 |

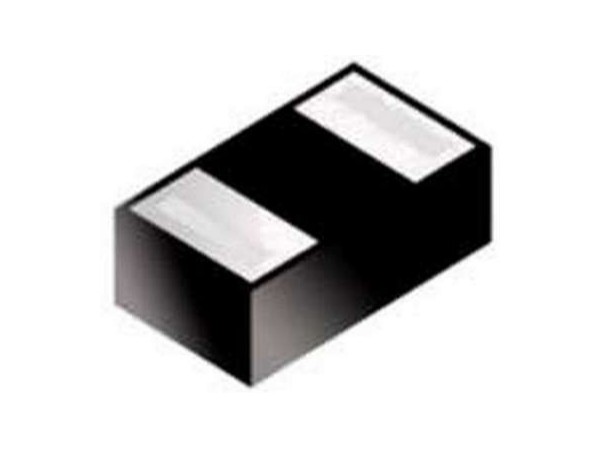

L:1.6±0.2 W:0.8±0.2 H:0.8MAX bps160808w产品规格书.pdf |
|
BPS160808W-R33M-T0 |
0.33 | 43 | 37 | 4.2 | 5.2 | 3.0 | 3.2 | |
|
BPS160808W-R47M-T0 |
0.47 | 43 | 37 | 3.3 | 4.2 | 3.0 | 3.2 | |
|
BPS160808W-R56M-T0 |
0.56 | 60 | 55 | 3.2 | 3.8 | 2.0 | 2.5 | |
| BPS160808W-1R0M-T0 | 1.0 | 115 | 105 | 2.5 | 3.0 | 1.8 | 2.0 | |
•Can be customized according to individual specifications.
•The test frequency is1MHz,OSC LEVEL:0.5V.
•Inductance functionKeysight Technologies LCRMeasuring instrument4285AMeasured. The same measurement equipment can be used for the same measurement.
•Inductance value: The inductance value decreases approximately from the actual initial value30%When the direct current.
•Isat: Inductance decreases approximately from the actual initial value30%The DC current.
•Itemp: The temperature rises aboutΔT=40°CWhen the direct current.
•Depending on the circumstances of our use,ItempIs a reference value.
•In the final application, the circuit should be designed so that the temperature rise of the component does not exceed40℃.
